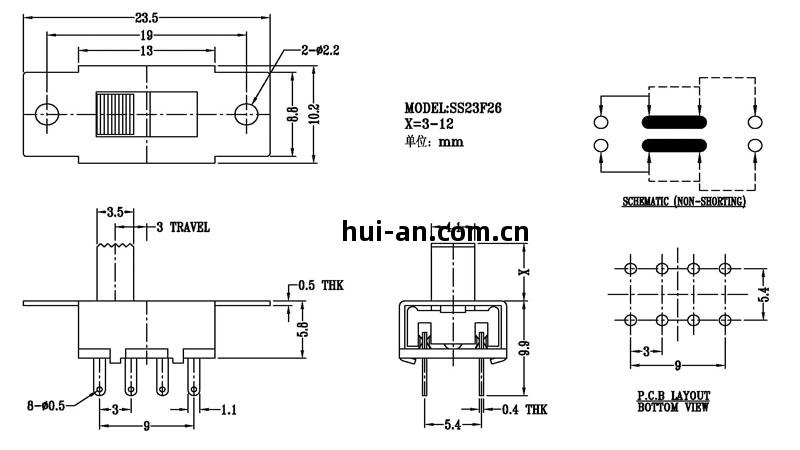

產品(pin)名(ming)稱(cheng):SS-23F26撥(bo)動(dong)開(kai)關(guan)

撥動開關主要技術(術)參(參)數(數)/Slide Switch Main data
1.使用(yong)功率/額定值Rating	DC 50V 0.3A~1A
2.觸(觸)點電(電)阻/Contact Resistance	< 100 mΩ
3.絕(絕)緣電阻/Insulation Resistance	≥ 100 MΩ
4.耐壓/Withstand Voltage	500V AC for 1 minute
5.撥動力/Operating Force	180~500gf
6.使(shi)用(yong)壽命(ming)/Life	10000次(ci)
7.操(cao)作溫(溫)度(du)/Operationg Temperature	-16℃to+60℃
8.儲(儲)存溫(溫)度(du)/Storage Temperature	-40℃to+85℃
9.符(fu)合標(標)準/Complies with	RoHs&Reach

SS-23F26撥(bo)動(dong)開(kai)關(guan)
