產(chan)品名稱(cheng):SS-22F06撥(bo)動開關

撥動開(開)關主(zhu)要技(ji)術(術)參(參)數/Slide Switch Main data
1.使(shi)用(yong)功(gong)率/額(額)定值(zhi)Rating	DC 50V 0.3A~1A
2.觸點(點)電(電)阻/Contact Resistance	< 100 mΩ
3.絕(絕)緣(緣)電(電)阻/Insulation Resistance	≥ 100 MΩ
4.耐(nai)壓/Withstand Voltage	500V AC for 1 minute
5.撥動力/Operating Force	180~500gf
6.使(shi)用(yong)壽(壽)命/Life cycles	10000次(ci)
7.操(cao)作溫(溫)度/Operationg Temperature	-16℃to+60℃
8.儲(儲)存(cun)溫(溫)度/Storage Temperature	-40℃to+85℃
9.符(fu)合(he)標(標)準(準)/Complies with	RoHs&Reach

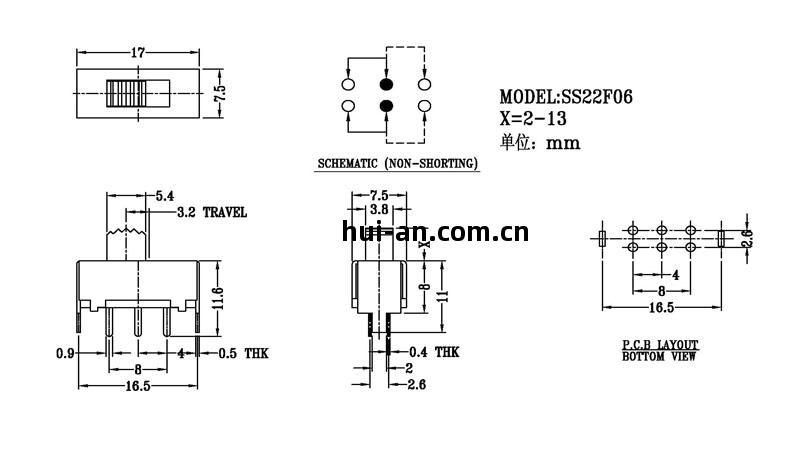

SS-22F06撥(bo)動(dong)開關
